RAVEN

In the retrofit sector, the brand-independent and flexible Raven portfolio is intended on one hand to complement the existing S-Tech product portfolio, and on the other hand to serve customers in a new field which is active implement control.

Get to know the offering

Manual guidance with lightbar: CR7 display with 500S antenna

Raven’s lightest and most cost-efficient 7-inch display, CR7, is intuitive and easy to use. A simple widget concept, easily accessible settings, ISO Universal Terminal (UT) and Task Controller capabilities make this mighty unit an affordable plug-and-play system.

500S is an affordable, entry-level GNSS receiver. It tracks GPS, GLONASS and BeiDou for improved strength in any environment. Fixed or magnetic mounting options make it ideal for portable and dynamic applications.
Read more

CR7 Key Features

  • Simplified, customisable widget layout
  • Ability to access settings page from inside a job
  • Map-based navigation
  • Auto field boundaries keep you organised automatically
  • Interactive field/job list and map view
  • Slingshot® ready for file transfer and remote support
  • ISO Universal Terminal and Task Controller functionality available
  • Straight A-B, A plus heading, pivot, contour, and last pass guidance
  • Multiple language support and customisable units

500S Key Features

  • Quick convergence time
  • Sub-meter pass-to-pass accuracy
  • SBAS (20 cm pass-to-pass)
  • Ability to shut down a device in a static position for any extended period
  • Seamless integration
  • Compact, low-profile design
  • Fixed or magnetic mounting options
  • Durable enclosure

Advanced steering: CR12 display with RS1 receiver

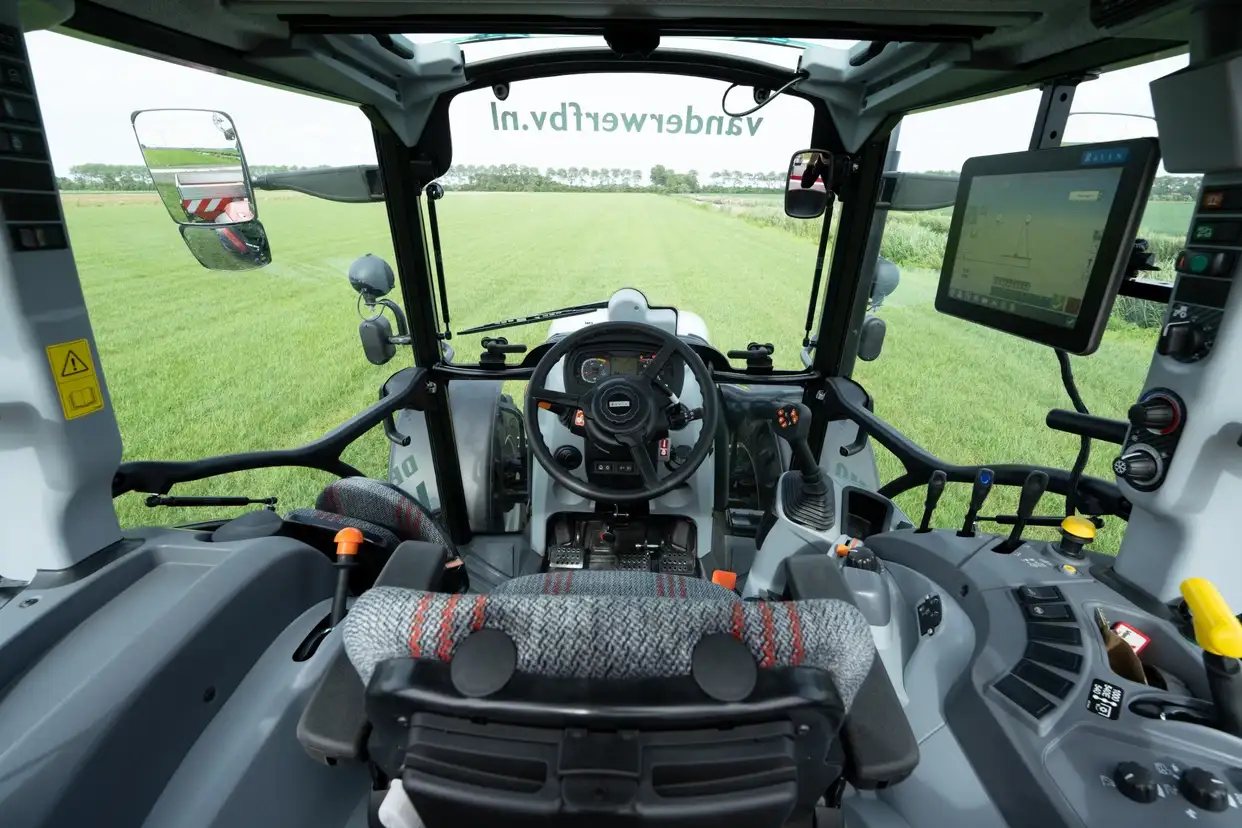

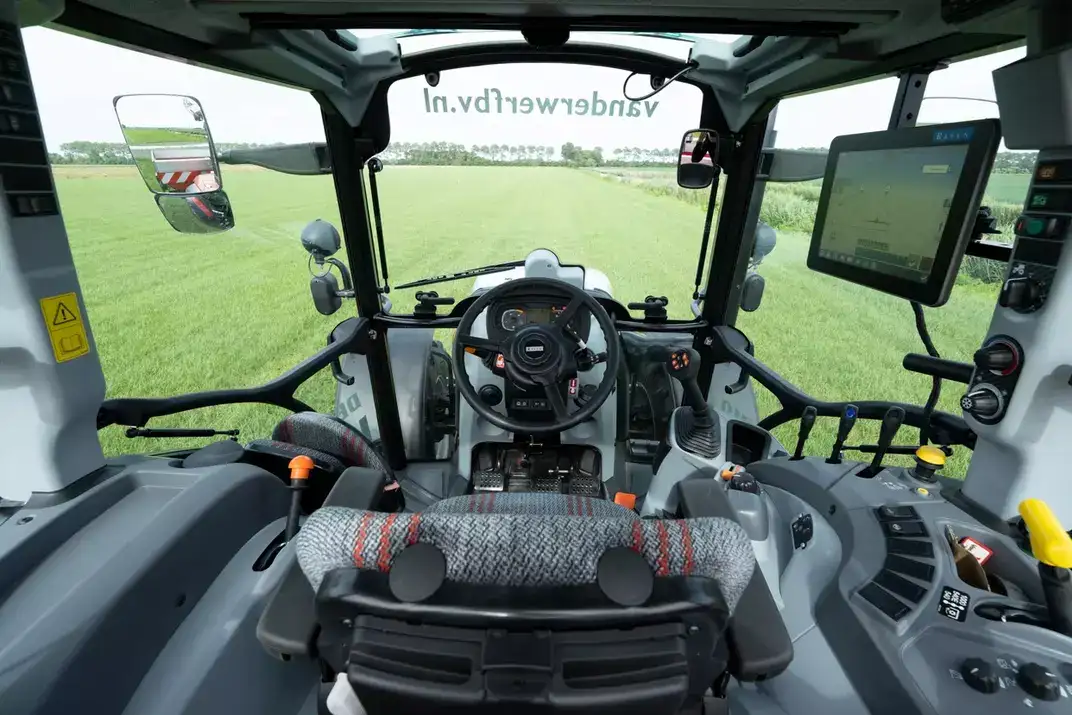

The CR12™ display specialises in accurate, complex path planning - especially on rows that aren’t straight or are on uneven terrain. Its premium in-cab experience is best suited for high-value crops on a small amount of land.

RS1 is a fully scalable steering solution that combines GNSS, a modem and autosteer into a complete connectivity solution. Industry leading accuracy at both high and low speeds combined with quick line acquisition improves efficiency and al-lows you to cover more hectares per day.
Read more

CR12 Key Features

  • 12.1-inch high-quality display
  • Simple, customisable user interface with touchscreen controls
  • Offers repeatable accuracy
  • Moves easily from machine to machine
  • Records and stores data each day, displaying what was planted and where. Data is stored locally and on the cloud
  • Controls up to 105 virtual sections
  • Map based navigation
  • Boundary and guidance line options
  • Recommended for up to 5-product control
  • Slingshot® file transfer, remote support, and over-the-air software updates
  • Easy backup/system recovery
  • Straight A-B, A+, Pivot, Contour, and Last Pass guidance
  • ISOBUS Universal Terminal and Task Controller capabilities

RS1 Key Features

  • Compatible with all Raven displays
  • Integrated steering controller, GPS receiver with antenna and cellular connectivity modem
  • GPS, GLONASS, BeiDou, Galileo
  • Optional dual-sim integrated cellular modem
  • Easy-to-use automatic calibration
  • Continuous reversing
  • Compatible with ISOBUS 11783 Virtual Terminal
  • Multi-lingual support

Depending on your machine (brand, type, steer-ready or not), you have different possibilities to compose your Raven guidance system.

DirecSteer (11).png

Assisted Steering with DirecSteer™

Raven's DirecSteer™ is a smart motor with internally controlled torque and electrical current, that works all while contributing to a simple, safe and silent operation.

  • Engage Speed: 0 kph
  • Distance to engage: The closest swath
  • Min. steering speed: 0.072 kph
  • Max. approach angle: 90 °
  • Reverse steering
  • Stays engaged when stopped
  • Automatic Turning possible with upgrade unlock
Hydrauliek Trekker Manifold Assembly_render1.png

Retrofit Hydraulic Guidance

Raven's exclusive hydraulic valve can be retrofitted to almost any machine-hydraulic block (manifold) with load sense as well as with open center systems.

Steer-Ready Guidance

Raven guidance systems can be retrofitted to a variety of steer ready tractors and machines from different manufacturers.
